WINGBOARD FOIL

MAXIMUM PROGRESSION

EARLY AND GRADUAL LIFT

MORE CONTROLLED & AGILE FLIGHT

EASY TOUCH DOWN

Olympic windsurfing and thin performance surfboards inspired this design.

The Wingboard is the board designed for maximum progression, early and gradual lift onto the foil, more control and agile flight, super easy touchdowns.

Our 2024 Wingboard design is designed to get you up and foiling, aimed at beginner to intermediate foilers wanting to progress their foiling to the next level, with design language borrowed from our windsurf development team.

A comprehensive six-board range allows foilers of all sizes to enjoy the sensation of flight.

DID YOU KNOW?

Starboard pioneered the gravity control system in 1994, and it is now used in windsurfing and paddle boarding. Control is achieved by keeping the feet as close to the water as possible.

Cutaways were introduced in 1999, and the wing systems were developed for our IQFoil Olympic boards to allow wide tail boards an easy liftoff and easier touchdown.

ON WATER

NEW ON WATER

The Wingboard maximizes on-water balance with high volume at the tail, nose, and rails.

NEW BALANCED VOLUME

Further away from your feet, you feel the stability due to volume leverage.

ROUND RAILS

On the deck make it comfortable to rest the foot when in the kneeling position.

NEW SIDE CHANNELS DRAIN WATER

From the deck when the board starts accelerating.

NEW BRUSHED EVA DECK PADS

Reduce knee rash while providing ample traction.

EARLY AND GRADUAL LIFT

NEW CURVED INNER CHANNEL

Accelerates the water and creates a rocking effect that helps the board get into a lift position.

NEW THE “CUTAWAYS”

At the tail act as stabilizers while lifting out of the water when the board gains speed, reducing the wetted surface and allowing the board to accelerate smoothly while on water.

NEW THE ANGLED TAIL

Helps make the critical transition from water to air seamless, while the sharp rails are vital to accelerate into early lift and flight.

NEW A DEEP V

Flows all the way from the nose to the foil, making it easy to get airborne in choppy waters and letting the board skim during touchdowns for easy rebound.

CONTROLLED AND AGILE FLIGHT

NEW THE “ROUNDED OFF” NOSE

Reduces board length, allowing you to have a shorter, more controllable, and more agile board.

NEW EXTRAORDINARY FLIGHT CONTROL AND STABILITY

Come from the reduced thickness in the standing area, as your feet are close to the foil, much like a thin surfboard.

NEW THE TAIL AREA

Has added volume right behind your back foot, while the side of the tail is carefully rounded for nice air flow when you hit higher speeds, giving you a smooth and stable flight.

NEW THE TAIL CUTAWAY

Lets the foil sit further forward, reducing the board area in front of you and creating a more maneuver-oriented feel.

EASY TOUCH DOWN

NEW THE LONG, STRETCHED V AND ROUNDED NOSE

Are aiding your touchdown and redirecting you into a new lift position.

NEW THE “CUTAWAY” VOLUME

Is reduced at the tail, so when you come down for a landing, the board’s nose will easily angle itself upwards towards flight mode

CUSTOM INSERTS

NEW MULTIPLE FOOT STRAP POSITIONS

Help you choose wider or more narrow straps.

NEW NARROW STRAPS

Give more control, and wider straps are easier to trim.

NEW THE LARGER BOARD

Will have inserts angled more towards the middle so you can stand closer to the middle and gain more control, while smaller boards will have inserts angled more outwards for agility.

NEW THE 14″ BOX

Allows for foils from most brands and is extra reinforced to ensure stability and a direct transfer of energy from the foil to your feet.

NEW THE COMFORTABLE CARRY HANDLE

Makes it easy to carry the board towards the water with all four fingers.

NEW V FOOTSTRAP SET

• Designed for the best comfort and performance in wingboarding, utilising the best Yulex neoprene construction in the industry to deliver a soft and secure footstrap.

• With a 60 degree angle, the new footstrap is designed to perfectly mould to the shape of your foot when inserted in our range of foil boards.

• Multiple footstrap screw holes are built into the reinforced yulex, giving riders the adjustability to angle the footstrap in their preferred riding position and angle.

NEW BOARD SOCK

Reduces paper waste while protecting your board from dust, scratches, and UV damage. Made with stretchable polyester, it fits various board shapes. Ensure optimal board maintenance with the iconic blue Board Sock, featuring a secure drawstring closure.

POSITION OF NOSE STICKER

Measure from the nose of the board

4’4″ 4cm // 4’8″ 14cm // 5’2″ 17cm // 5’8″17cm // 6’5″ 23cm

CONSTRUCTION:

LITE TECH

LIGHT, STRONG, AFFORDABLE

• Extra rigidity with the introduction of unidirectional stringer bands and solid with added rail/ nose reinforcements.
• Australian pine on the standing area for extra impact resistance and rigidity in the most critical area.
• All inserts have added high-density foam reinforcements.

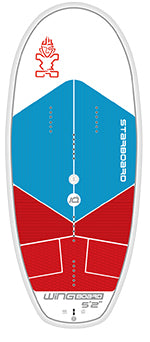

Short, stable and super playful, the 5’2” gives great trim control and nimble turning from the short length, while offering a comfortable float for riders up to 70kg.

Model	7'1" x 32"	6'5" x 28.5"	5'8" x 27"	5'2" x 26"	4'8" x 25"	4'4" x 24"
Rider Weight	Up to 130 kg	Up to 105 kg	Up to 85 kg	Up to 70 kg	Up to 60 kg	Up to 55 kg
Length	7'1" / 215.9 cm	6'5" / 195.6 cm	5'8" / 172.7 cm	5'2" / 157.5 cm	4'8" / 142.2 cm	4'4" / 132.1 cm
Width	32" / 81.3 cm	28.5" / 72.4 cm	27" / 68.6 cm	26" / 66.0 cm	25" / 63.5 cm	24" / 61.0 cm
Tail Width	23.5” / 59.7 cm	21.6” / 54.8 cm	23.5" / 59.7 cm	21" / 53.3 cm	21” / 53.3 cm	21.8" / 55.4 cm
Volume	140 L	115 L	95 L	80 L	65 L	50 L
Footstrap	Can be purchased after-market for ASAP and Lite Tech	Included with Blue Carbon and can be purchased after-market for Lite Tech	Included with Blue Carbon and can be purchased after-market for Lite Tech	Included with Blue Carbon and can be purchased after-market for Lite Tech	Included with Blue Carbon and can be purchased after-market for Lite Tech	Included with Blue Carbon and can be purchased after-market for Lite Tech
Fin Set Up	US Box 14"	US Box 14"	US Box 14"	US Box 14"	US Box 14"	US Box 14"
Fins	Foil not included	Foil not included	Foil not included	Foil not included	Foil not included	Foil not included
Weight	Lite Tech: 10.3 kg (Est.) ASAP: 11.0 kg (Est.)	Blue Carbon: 7.0 kg (Avg.) Lite Tech: 8.7 kg (Est.)	Blue Carbon: 6.8 kg (Est.) Lite Tech: 7.8 kg (Est.)	Blue Carbon: 5.6 kg (Avg.) Lite Tech: 7.0 kg (Est.)	Blue Carbon: 5.0 kg (Avg.) Lite Tech: 6.4 kg (Est.)	Blue Carbon: 4.9 kg (Est.)
